Od 8 - 108mm Edelstahl-Rohr für mechanische Struktur/Gebäude

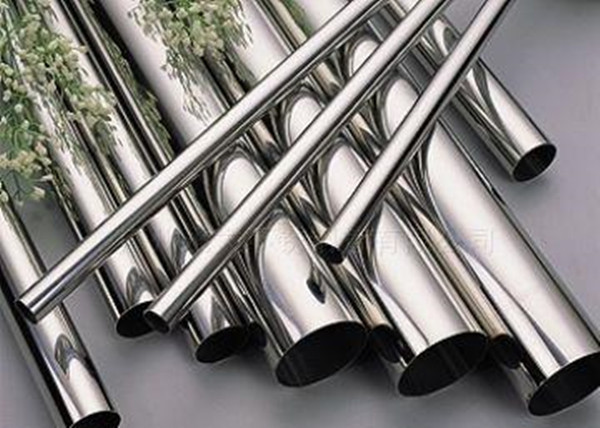

  • OD 8 - 108mm Stainless Steel Pipe For Mechanical Structure / Building
Herkunftsort Made in China
Markenname JUYE,SINOSTEEL
Zertifizierung ISO
Modellnummer 304 304L 316L 310S 309S
Min Bestellmenge Verhandlung
Preis negotiable
Verpackung Informationen Verpackt in den Holzkisten
Lieferzeit innerhalb eines Monats
Zahlungsbedingungen 20% T/T an PO, 80% vor Versand
Versorgungsmaterial-Fähigkeit 200T

Treten Sie mit mir für freie Proben und Kupons in Verbindung.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skypen: sales10@aixton.com

Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.

x
Produktdetails
Beschreibung Edelstahlrohr Grad 304 304L 316L 310S 309S
Außendurchmesser 8-108mm Standard ASTM A554 JIS G3446
Dicke 0.25-3.0mm Länge Anfrage
Anwendung Mechanische Struktur- und Gebäudedekoration Shape RUNDROHR
Hervorheben

nahtlose Edelstahlrohre

,

Edelstahl geschweißtes Rohr
Hinterlass eine Nachricht
Produkt-Beschreibung

Hauptspezifikation:

Beschreibung: Edelstahlrohr

Form: Rund

Grad: 304 304L 316L 310S 309S

Außendurchmesser: 8-108mm, sehen hier unterhalb der beigefügten Liste.

Standard: ASTM A554 JIS G3446

Stärke: 0.25-3.0mm

Zahlungsbedingungen: 20% T/T an PO, 80% vor Versand

Delivey: innerhalb eines Monats




Warenangebot

Außendurchmesser Stärke (Millimeter)
Millimeter Zoll 0,25 0,30 0,35 0,40 0,50 0,60 0,70 0,80 0,90 1,00 1,20 1,50 2,00 2,50 3,00
8   ● ● ● ● ● ● ● ● ● ●
9,5 3/8" ● ● ● ● ● ● ● ● ● ●
10   ● ● ● ● ● ● ● ● ● ●
12   ● ● ● ● ● ● ● ● ● ● ●
12,7 1/2 „ ● ● ● ● ● ● ● ● ● ● ●
13   ● ● ● ● ● ● ● ● ● ● ●
14   ● ● ● ● ● ● ● ● ● ● ●
15   ● ● ● ● ● ● ● ● ● ● ●
15,9 5/8" ● ● ● ● ● ● ● ● ● ● ●
18   ● ● ● ● ● ● ● ● ● ● ●
19,1 3/4" ● ● ● ● ● ● ● ● ● ● ● ● ●
20,5   ● ● ● ● ● ● ● ● ● ● ● ● ●
22,2 7/8" ● ● ● ● ● ● ● ● ● ● ● ● ●
24   ● ● ● ● ● ● ● ● ● ● ● ● ●
25,4 1" ● ● ● ● ● ● ● ● ● ● ● ● ●
28,6 1 18/" ● ● ● ● ● ● ● ● ● ● ● ● ●
29   ● ● ● ● ● ● ● ● ● ● ● ● ●
30   ● ● ● ● ● ● ● ● ● ● ● ● ●
31,8 1 1/4"   ● ● ● ● ● ● ● ● ● ● ● ● ●
34     ● ● ● ● ● ● ● ● ● ● ● ● ●
35     ● ● ● ● ● ● ● ● ● ● ● ● ●
36       ● ● ● ● ● ● ● ● ● ● ● ●
38,1 1 1/2 „     ● ● ● ● ● ● ● ● ● ● ● ●
40,5       ● ● ● ● ● ● ● ● ● ● ● ●
41,3 1 5/8"     ● ● ● ● ● ● ● ● ● ● ● ●
42,7       ● ● ● ● ● ● ● ● ● ● ● ●
44,5 1 3/4"     ● ● ● ● ● ● ● ● ● ● ● ●
47           ● ● ● ● ● ● ● ● ● ●
50,8 2"         ● ● ● ● ● ● ● ● ● ● ●
54           ● ● ● ● ● ● ● ● ● ● ●
57           ● ● ● ● ● ● ● ● ● ● ●
60           ● ● ● ● ● ● ● ● ● ● ●
63,5 2 1/2 „         ● ● ● ● ● ● ● ● ● ● ●
70           ● ● ● ● ● ● ● ● ● ● ●
76,2 3"         ● ● ● ● ● ● ● ● ● ● ●
84           ● ● ● ● ● ● ● ● ● ● ●
85           ● ● ● ● ● ● ● ● ● ● ●
86,9           ● ● ● ● ● ● ● ● ● ● ●
88,9 3 1/2 „         ● ● ● ● ● ● ● ● ● ● ●
101,6 4"         ● ● ● ● ● ● ● ● ● ● ●
108             ● ● ● ● ● ● ● ● ● ●





Berechnung für Edelstahlrohrgewicht



Grad Dichte (Kg/dm3) Berechnung
SUS304 SUS304L 7,93 W=0.02491 t (Papierlösekorotron)
TP304 TP304L 7,90 W=0.02482 t (Papierlösekorotron)
SUS316 SUS316L 8,00 W=0.02513 t (Papierlösekorotron)
TP316 TP316L 8,00 W=0.02513 t (Papierlösekorotron)



Mechanische Eigenschaften

Grad Dehnfestigkeit (N/mm2) Härte (HRB) Streckgrenze (N/mm2) Verlängerung (%) Ref.Standard
304 ≤670 ≤88 ≥205 ≥55% ASTM A240/A 240M-2012
316L ≥485 ≤88 ≥170 ≥55% ASTM A240/A 240M-2012
304J1 ≥450 ≤90 ≥155 ≥40% JIS G4304 -2012
321 ≥520 ≤90 ≥205 ≥55% JIS G4304 -2012
S30100 ≤750 ≤93 ≥205 ≥55% ASTM A240/A 240M-2012
S32205 ≥655 ≤32 ≥450 ≥25% ASTM A240/A 240M-2012
309S ≥515 ≤88 ≥205 ≥40% ASTM A240/A 240M-2012
310S ≥515 ≤88 ≥205 ≥40% ASTM A240/A 240M-2012



Hauptanwendung:

  • Maschinerie
  • Medizinische Ausrüstung
  • Eignungs-Ausrüstung
  • Hochgeschwindigkeitszüge
  • Automotives
  • Innenausstattung
